Proton 4K ZOOM

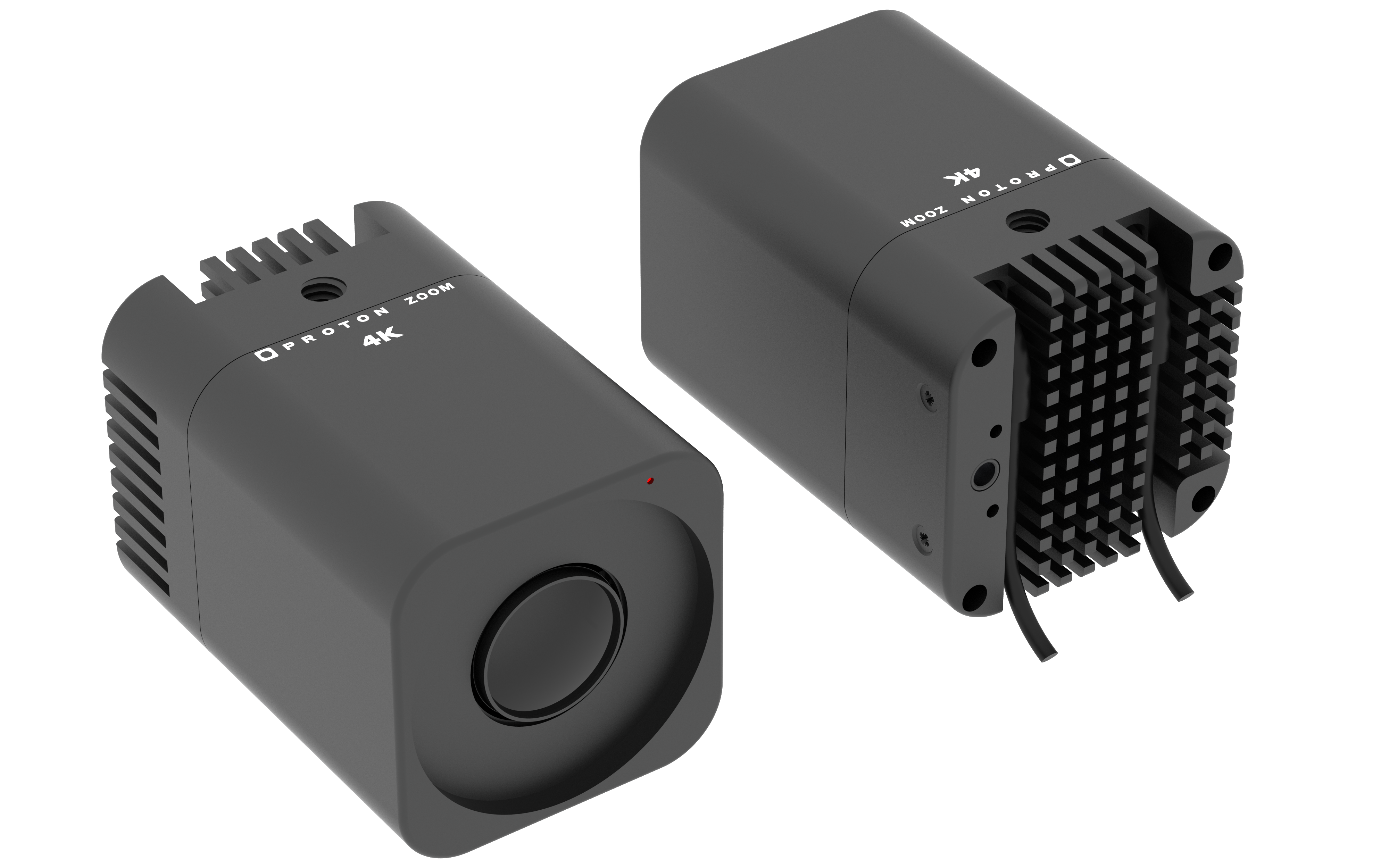

Smallest 4K ZOOM camera.
Variants
4K ZOOM
Reference: PCI-4K-ZOOM
| Size | 50x50x73mm |
| Weight | 234g |
| Voltage | 12-25V1 |
| Power | 7W2 |
| Lens | Integrated 55-115° (motorized I/Z/F)3 |
| Sensor | 8.8mm / 12bits |
| Cables | M-BNC & 6P Hirose |
| Formats | up to 4Kp60 |
4K ZOOM CON
Reference: PCI-4K-ZOOM-CON — Connector version
| Size | TBD |
| Weight | TBD |
| Connectors | HD-BNC & 6P Hirose (TBD) |
All other specifications are identical to the standard 4K ZOOM.
4K ZOOM RAIN
Reference: PCI-4K-ZOOM-RAIN — Weatherproof (IP67) version
| Weight | TBD |
| Rating | IP674 |
All other specifications are identical to the standard 4K ZOOM.
Downloads
Manuals
This page is an extract of these manuals, so make sure to check them out.
Packages
| Product | Download link | Package version | SOFT version | FPGA version | Control version | Updater version |
|---|---|---|---|---|---|---|
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 9 | 1.7.1 | 1.15 | 1.5.2.0 | 1.3.1.0 |
All versions
| Product | Download link | Package version | SOFT version | FPGA version | Control version | Updater version |
|---|---|---|---|---|---|---|
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 1 | 1.3.2 | 1.4 | 1.1.1.0 | 1.2.2.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 2 | v1.4.0 | v1.7 | 1.2.0.0 | 1.2.2.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 3 | v1.4.2 | v1.7 | 1.2.0.0 | 1.2.4.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 4 | v1.5.0 | v1.10 | 1.3.2.0 | 1.2.5.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 5 | v1.5.1 | v1.10 | 1.4.2.0 | 1.2.7.1 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 6 | v1.6.1 | v1.12 | 1.4.3.1 | 1.2.7.2 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 7 | 1.7.0 | 1.15 | 1.5.0.0 | 1.2.9.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 8 | 1.7.1 | 1.15 | 1.5.1.1 | 1.3.0.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 9 | 1.7.1 | 1.15 | 1.5.2.0 | 1.3.1.0 |
See the firmware update page for upgrade instructions.
Wires
SDI
Belden 179DT with male BNC plug
Male 6P Hirose
Ref: HR10A-7P-6P
This cable provides: data and power.
Here is the pinout:
| Signal | Pin |
|---|---|
| RS485 A/+ | 1 |
| RS485 B/- | 2 |
| GND | 5 |
| +12V | 6 |
warning
Please, note the picture is solder side of the camera side. So if you look the connector, it's left/right inverted. Same if you're wiring a matching connector.
