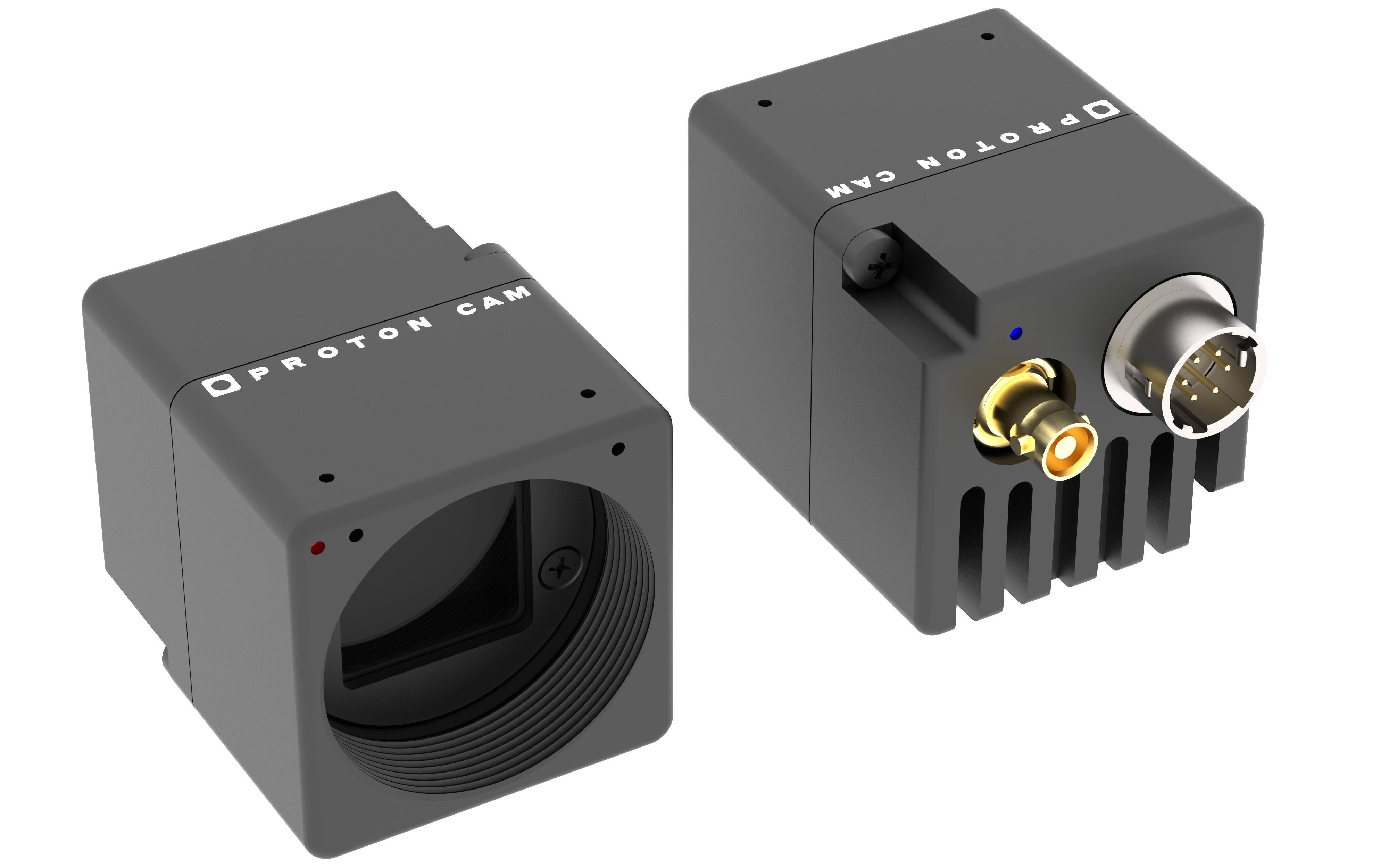

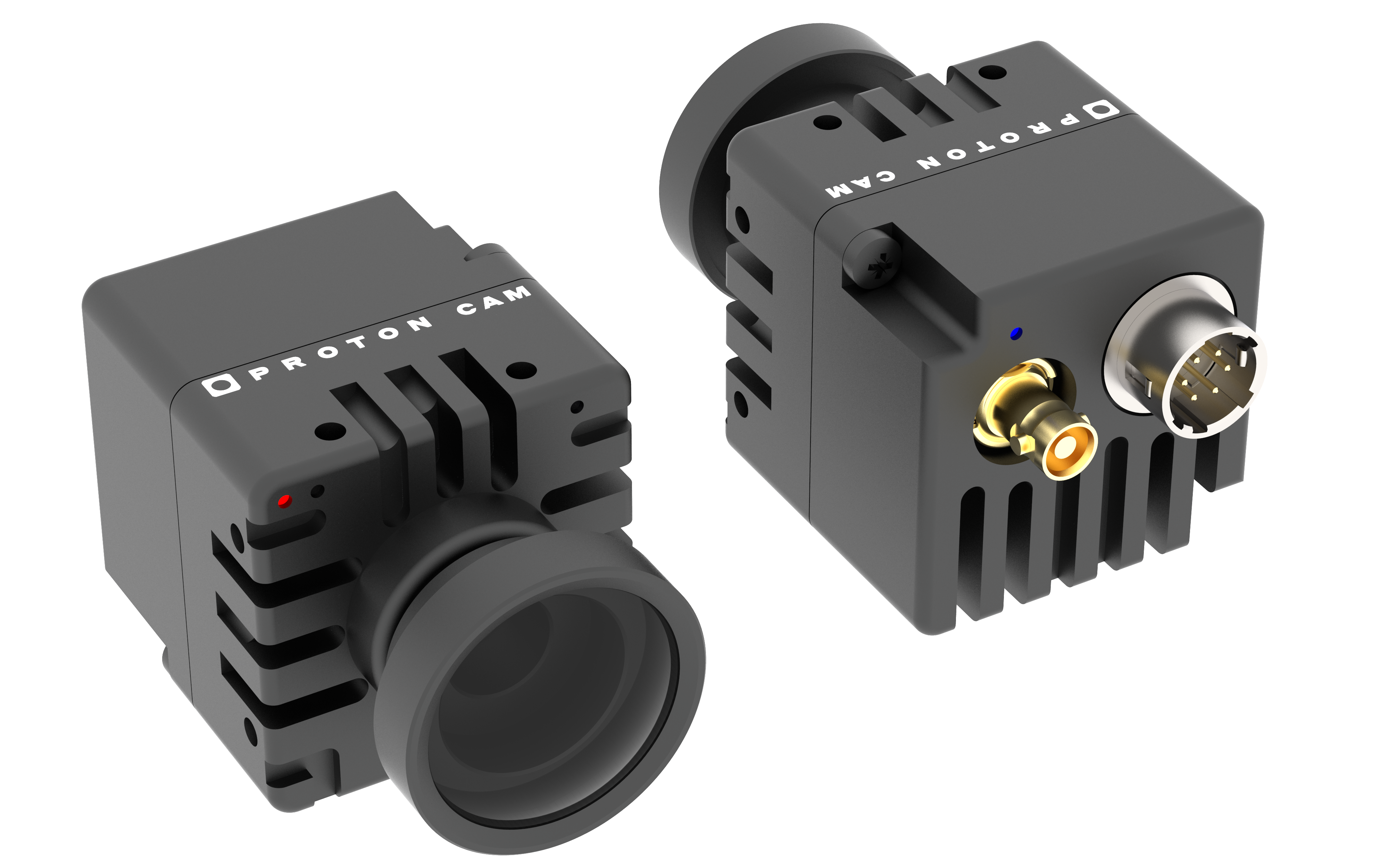

Proton CAM
Smallest HD mini camera.
Reference: PCI-CAM
| Size | 28x28x23mm |
| Weight | 24.5g |
| Voltage | 4.5-25V1 |
| Power | 2.5W2 |
| Lens | S-mount |
| Sensor | 8.8mm / 12 bits |
| Cables | M-BNC & 6P Hirose |
| Audio | Stero mic (integrated) |
Supported formats:
- 1080i 50/59/60
- 1080p 23/24/25/29/30/50/59/60
Lenses
We offer a wide range of high quality S-mount lenses
| Reference | Mount | F | Focal | Angle |
|---|---|---|---|---|
| PCI-LENS-22-22 | S-mount | F/2.2 | 2.2mm | 124° |
| PCI-LENS-27-28 | S-mount | F/2.8 | 2.7mm | 110° |
| PCI-LENS-32-23 | S-mount | F/2.3 | 3.2mm | 97° |
| PCI-LENS-39-28 | S-mount | F/2.8 | 3.9mm | 88° |
| PCI-LENS-42-19 | S-mount | F/1.9 | 4.2mm | 85° |
| PCI-LENS-60-17 | S-mount | F/1.7 | 6mm | 68° |
| PCI-LENS-78-20 | S-mount | F/2.0 | 7.8mm | 52° |
| PCI-LENS-120-20 | S-mount | F/2.0 | 12mm | 35° |
Downloads
Manuals
This page is an extract of these manuals, so make sure to check them out.
Packages
| Product | Download link | Package version | SOFT version | FPGA version | Control version | Updater version |
|---|---|---|---|---|---|---|
| CAM/RAIN/FLEX/ZOOM | download | 17 | 1.7.1 | 2.4 | 1.5.2.0 | 1.3.1.0 |
All versions
| Product | Download link | Package version | SOFT version | FPGA version | Control version | Updater version |
|---|---|---|---|---|---|---|
| CAM/RAIN/FLEX/ZOOM | download | 1 | 1.1.0 | 1.2 | - | 1.0.1.0 |
| CAM/RAIN/FLEX/ZOOM | download | 2 | v1.1.1 | v1.2 | - | - |
| CAM/RAIN/FLEX/ZOOM | download | 3 | v1.1.2 | v1.3 | - | - |
| CAM/RAIN/FLEX/ZOOM | download | 4 | v1.2.0 | v1.5 | - | 1.2.0.2 |
| CAM/RAIN/FLEX/ZOOM | download | 5 | v1.3.0 | v1.8 | 1.0.0.0 | 1.2.1.1 |
| CAM/RAIN/FLEX/ZOOM | download | 6 | v1.3.1 | v1.8 | 1.1.0.0 | 1.2.1.2 |
| CAM/RAIN/FLEX/ZOOM | download | 7 | v1.3.2 | v1.9 | 1.1.1.0 | 1.2.2.0 |
| CAM/RAIN/FLEX/ZOOM | download | 8 | v1.4.0 | v1.12 | 1.2.0.0 | 1.2.2.0 |
| CAM/RAIN/FLEX/ZOOM | download | 9 | v1.4.1 | v1.12 | 1.2.0.0 | 1.2.2.0 |
| CAM/RAIN/FLEX/ZOOM | download | 10 | v1.4.2 | v1.12 | 1.2.0.0 | 1.2.4.0 |
| CAM/RAIN/FLEX/ZOOM | download | 11 | v1.5.0 | v1.15 | 1.3.2.0 | 1.2.5.0 |
| CAM/RAIN/FLEX/ZOOM | download | 12 | v1.5.1 | v1.15 | 1.4.2.0 | 1.2.7.1 |
| CAM/RAIN/FLEX/ZOOM | download | 13 | 1.6.0 | 2.1 | 1.4.3.0 | 1.2.7.2 |
| CAM/RAIN/FLEX/ZOOM | download | 14 | 1.6.1 | 2.1 | 1.4.3.1 | 1.2.7.2 |
| CAM/RAIN/FLEX/ZOOM | download | 15 | 1.7.0 | 2.4 | 1.5.0.0 | 1.2.9.0 |
| CAM/RAIN/FLEX/ZOOM | download | 16 | 1.7.1 | 2.4 | 1.5.1.1 | 1.3.0.0 |
| CAM/RAIN/FLEX/ZOOM | download | 17 | 1.7.1 | 2.4 | 1.5.2.0 | 1.3.1.0 |
See the firmware update page for upgrade instructions.
Mechanical

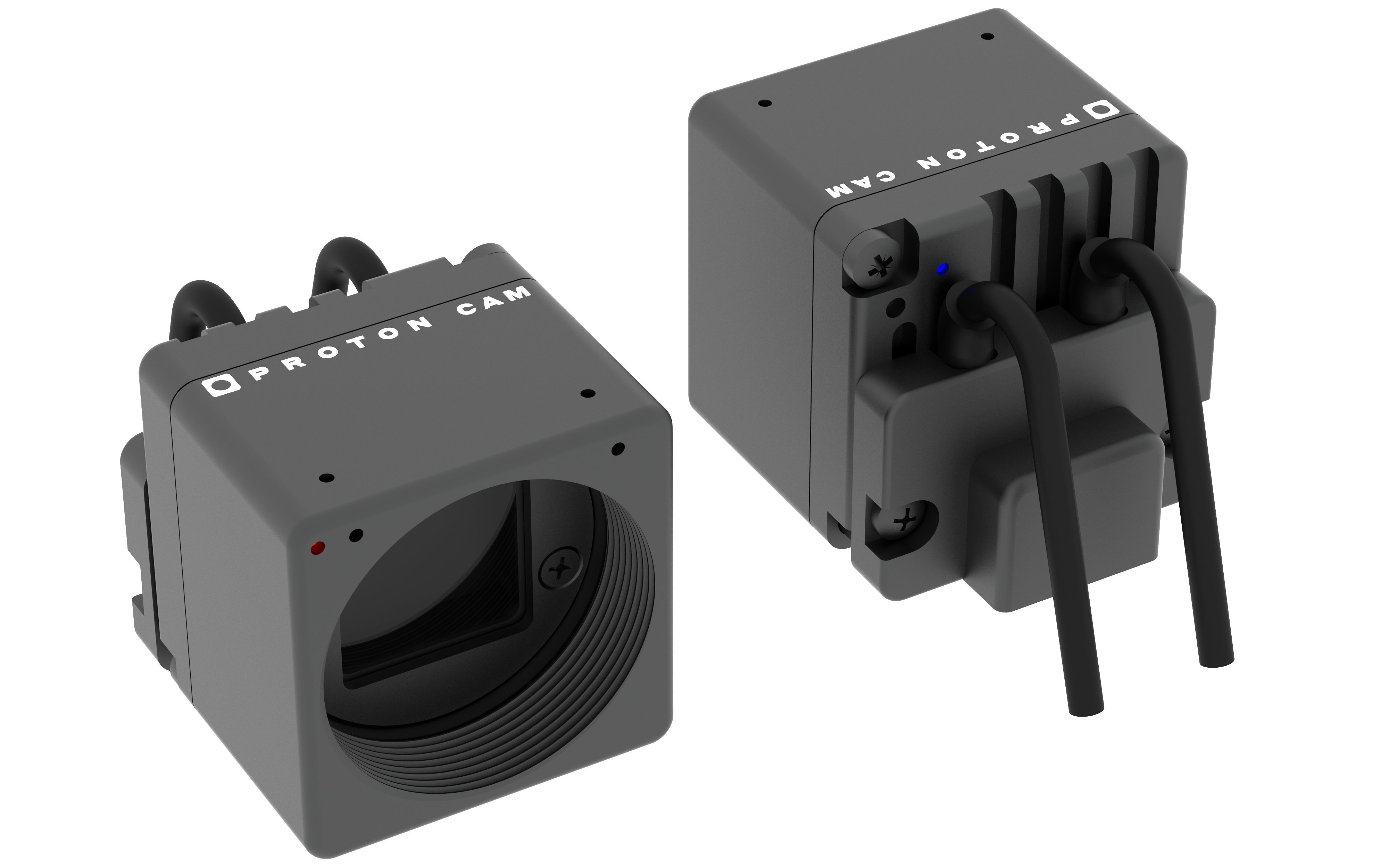

Wires
SDI
Belden 179DT with male BNC plug
Male 6P Hirose
Ref: HR10A-7P-6P
This cable provides: data and power.
Here is the pinout:
| Signal | Pin |
|---|---|
| RS485 A/+ | 1 |
| RS485 B/- | 2 |
| GND | 5 |
| +12V | 6 |
warning
Please, note the picture is solder side of the camera side. So if you look the connector, it's left/right inverted. Same if you're wiring a matching connector.
