Proton 4K FLEX
Smallest 4K dual body camera.
Reference: PCI-4K-FLEX

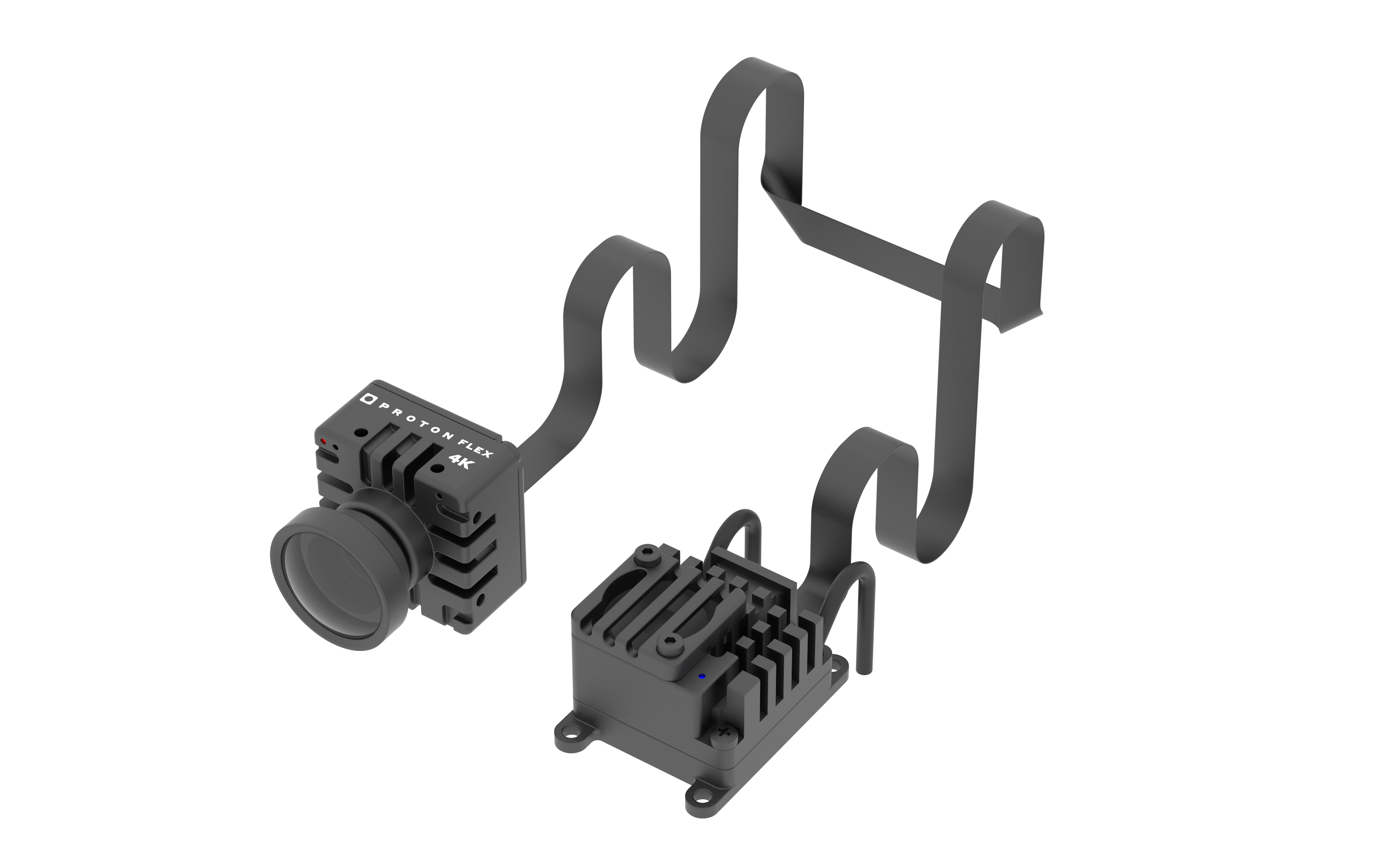

This camera is a Proton 4K but with split body:
- The sensor head (stays cold)
- The video processing unit (is warm)
They are separated by a ribbon, up to 30cm.
Specifications
| Head size | 28x28x19.5mm |
| Processor size | 56.5x54x22mm |
| Weight | TBD |
| Voltage | 10.5-25V1 |
| Power | 6W2 |
| Lens | S-mount |
| Sensor | 8.8mm / 12bits |
| Cables | M-BNC & 6P Hirose |
Supported formats:
- 1080i 50/59/60
- 1080p 23/24/25/29/30/50/59/60
- 4Kp 23/24/25/29/30/47/48/50/59/60
Lenses
We offer a wide range of high quality S-mount lenses
| Reference | Mount | F | Focal | Angle |
|---|---|---|---|---|
| PCI-LENS-22-22 | S-mount | F/2.2 | 2.2mm | 124° |
| PCI-LENS-27-28 | S-mount | F/2.8 | 2.7mm | 110° |
| PCI-LENS-30-20 | S-mount | F/2.0 | 3mm | 121° |
| PCI-LENS-32-23 | S-mount | F/2.3 | 3.2mm | 97° |
| PCI-LENS-39-28 | S-mount | F/2.8 | 3.9mm | 88° |
| PCI-LENS-40-28 | S-mount | F/2.8 | 4mm | 97° |
| PCI-LENS-42-19 | S-mount | F/1.9 | 4.2mm | 85° |
| PCI-LENS-60-17 | S-mount | F/1.7 | 6mm | 68° |
| PCI-LENS-78-20 | S-mount | F/2.0 | 7.8mm | 52° |
| PCI-LENS-120-20 | S-mount | F/2.0 | 12mm | 35° |
See the lenses page for installation, focus and shading instructions.
Downloads
Manuals
This page is an extract of these manuals, so make sure to check them out.
Packages
| Product | Download link | Package version | SOFT version | FPGA version | Control version | Updater version |
|---|---|---|---|---|---|---|
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 9 | 1.7.1 | 1.15 | 1.5.2.0 | 1.3.1.0 |
All versions
| Product | Download link | Package version | SOFT version | FPGA version | Control version | Updater version |
|---|---|---|---|---|---|---|
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 1 | 1.3.2 | 1.4 | 1.1.1.0 | 1.2.2.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 2 | v1.4.0 | v1.7 | 1.2.0.0 | 1.2.2.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 3 | v1.4.2 | v1.7 | 1.2.0.0 | 1.2.4.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 4 | v1.5.0 | v1.10 | 1.3.2.0 | 1.2.5.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 5 | v1.5.1 | v1.10 | 1.4.2.0 | 1.2.7.1 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 6 | v1.6.1 | v1.12 | 1.4.3.1 | 1.2.7.2 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 7 | 1.7.0 | 1.15 | 1.5.0.0 | 1.2.9.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 8 | 1.7.1 | 1.15 | 1.5.1.1 | 1.3.0.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 9 | 1.7.1 | 1.15 | 1.5.2.0 | 1.3.1.0 |
See the firmware update page for upgrade instructions.
Wires
SDI
Belden 179DT with male BNC plug
Male 6P Hirose
Ref: HR10A-7P-6P
This cable provides: data and power.
Here is the pinout:
| Signal | Pin |
|---|---|
| RS485 A/+ | 1 |
| RS485 B/- | 2 |
| GND | 5 |
| +12V | 6 |
warning
Please, note the picture is solder side of the camera side. So if you look the connector, it's left/right inverted. Same if you're wiring a matching connector.
