Proton 4K 3D
Smallest stereoscopic 4K 3D camera.
Reference: PCI-4K-3D

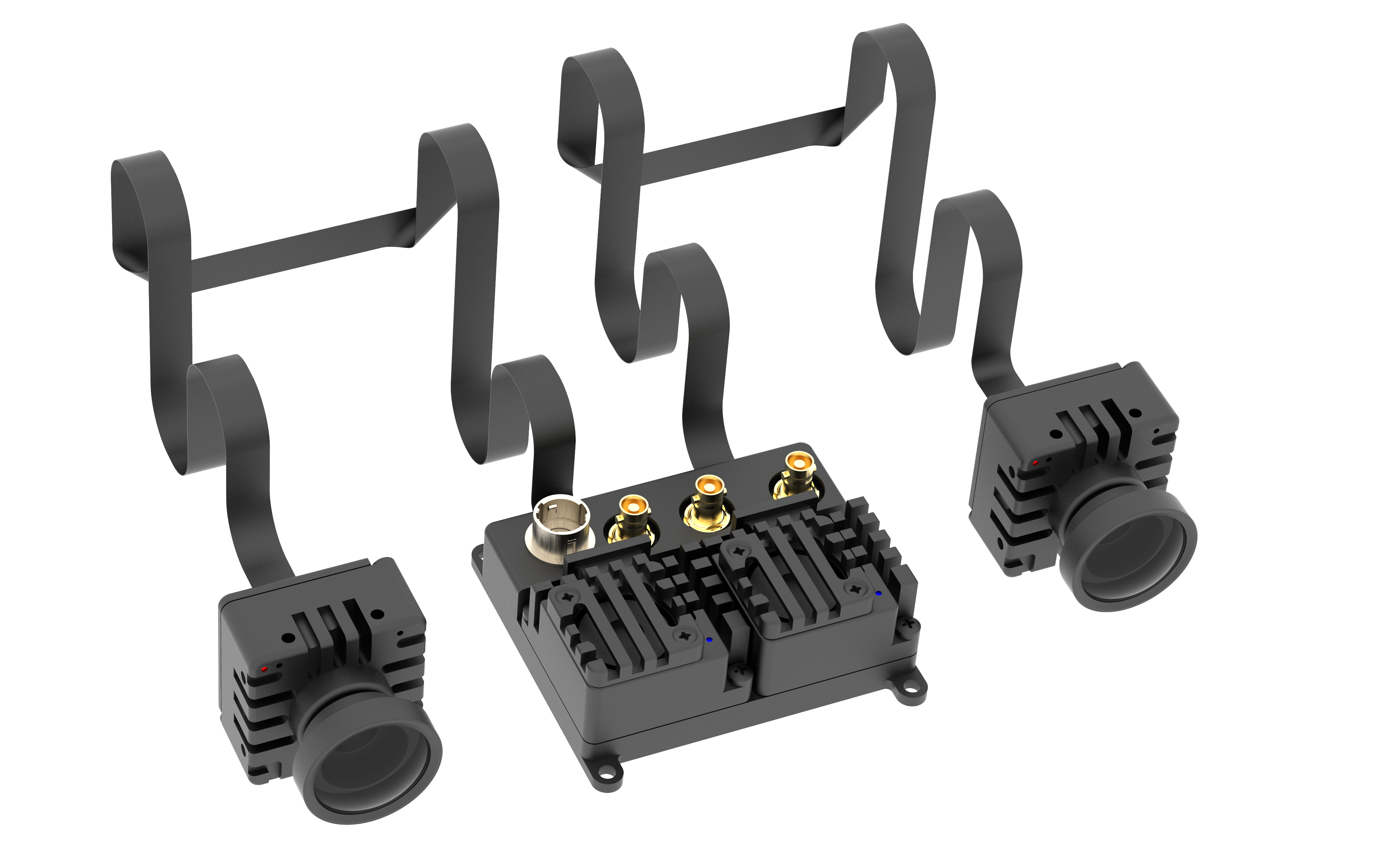

This camera features two synchronized camera heads connected to a single video processor, enabling stereoscopic 3D capture.
Specifications
| Head size | 28x28x19.5mm (x2) |
| Processor size | 56.5x54x22mm |
| Weight | TBD |
| Voltage | 11.5-25V1 |
| Power | 12W2 |
| Lens | S-mount (x2) |
| Sensor | 8.8mm / 12bits (x2) |
| SDI outputs | 2x HD-BNC (SDI A + SDI B) |
| Sync | HD-BNC (Proton Sync) |
| Power cable | 6P Hirose |
Supported formats:
- 1080i 50/59/60
- 1080p 23/24/25/29/30/50/59/60
- 4Kp 23/24/25/29/30/47/48/50/59/60
3D Synchronization
Both camera heads are automatically synchronized by default (Master mode). The SYNC connector allows linking multiple 3D cameras together.
Three sync modes are available:
- Off : cameras operate independently
- Master (default) : self-sync + output sync signal
- Slave : waits for external sync signal
The sync signal is a proprietary PROTON format, not bi-level or tri-level. Converter boxes are available on request for tri-level sync infrastructure.
Camera IDs: A = ID 1, B = ID 2. Both are controllable together via broadcast group 0.
Lenses
We offer a wide range of high quality S-mount lenses
| Reference | Mount | F | Focal | Angle |
|---|---|---|---|---|
| PCI-LENS-22-22 | S-mount | F/2.2 | 2.2mm | 124° |
| PCI-LENS-27-28 | S-mount | F/2.8 | 2.7mm | 110° |
| PCI-LENS-30-20 | S-mount | F/2.0 | 3mm | 121° |
| PCI-LENS-32-23 | S-mount | F/2.3 | 3.2mm | 97° |
| PCI-LENS-39-28 | S-mount | F/2.8 | 3.9mm | 88° |
| PCI-LENS-40-28 | S-mount | F/2.8 | 4mm | 97° |
| PCI-LENS-42-19 | S-mount | F/1.9 | 4.2mm | 85° |
| PCI-LENS-60-17 | S-mount | F/1.7 | 6mm | 68° |
| PCI-LENS-78-20 | S-mount | F/2.0 | 7.8mm | 52° |
| PCI-LENS-120-20 | S-mount | F/2.0 | 12mm | 35° |
See the lenses page for installation, focus and shading instructions.
Downloads
Manuals
This page is an extract of these manuals, so make sure to check them out.
Packages
| Product | Download link | Package version | SOFT version | FPGA version | Control version | Updater version |
|---|---|---|---|---|---|---|
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 9 | 1.7.1 | 1.15 | 1.5.2.0 | 1.3.1.0 |
All versions
| Product | Download link | Package version | SOFT version | FPGA version | Control version | Updater version |
|---|---|---|---|---|---|---|
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 1 | 1.3.2 | 1.4 | 1.1.1.0 | 1.2.2.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 2 | v1.4.0 | v1.7 | 1.2.0.0 | 1.2.2.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 3 | v1.4.2 | v1.7 | 1.2.0.0 | 1.2.4.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 4 | v1.5.0 | v1.10 | 1.3.2.0 | 1.2.5.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 5 | v1.5.1 | v1.10 | 1.4.2.0 | 1.2.7.1 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 6 | v1.6.1 | v1.12 | 1.4.3.1 | 1.2.7.2 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 7 | 1.7.0 | 1.15 | 1.5.0.0 | 1.2.9.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 8 | 1.7.1 | 1.15 | 1.5.1.1 | 1.3.0.0 |
| 4K/ZOOM/ZOOM RAIN/3D/FLEX/CS | download | 9 | 1.7.1 | 1.15 | 1.5.2.0 | 1.3.1.0 |
See the firmware update page for upgrade instructions.
Wires
SDI A & SDI B
HD-BNC connectors (Amphenol 034-1028) carrying 12G SDI signal for each camera.
Sync
HD-BNC connector for Proton Sync signal (proprietary format).
Male 6P Hirose
Ref: HR10A-7R-6PB(73)
This cable provides: data and power.
Here is the pinout:
| Signal | Pin |
|---|---|
| RS485 A/+ | 1 |
| RS485 B/- | 2 |
| GND | 5 |
| +12V | 6 |
Please, note the picture is solder side of the camera side. So if you look the connector, it's left/right inverted. Same if you're wiring a matching connector.
